01
Traffic consultants
Validate handling capacity and interval against ISO Table 2 design criteria.
ISO 8100-32 · CIBSE Guide D
Free ISO 8100-32 lift traffic analysis and elevator sizing
Size the lifts before you commit to the shaft. Free up-peak handling-capacity check in the browser. Pro will add uncapped building size, discrete-event simulation, and ISO PDF export — subscriptions opening soon.
No account required
Outputs
Report and simulator, side by side
An ISO-structured PDF for review, and a DES workspace with car timelines next to the analytical check.

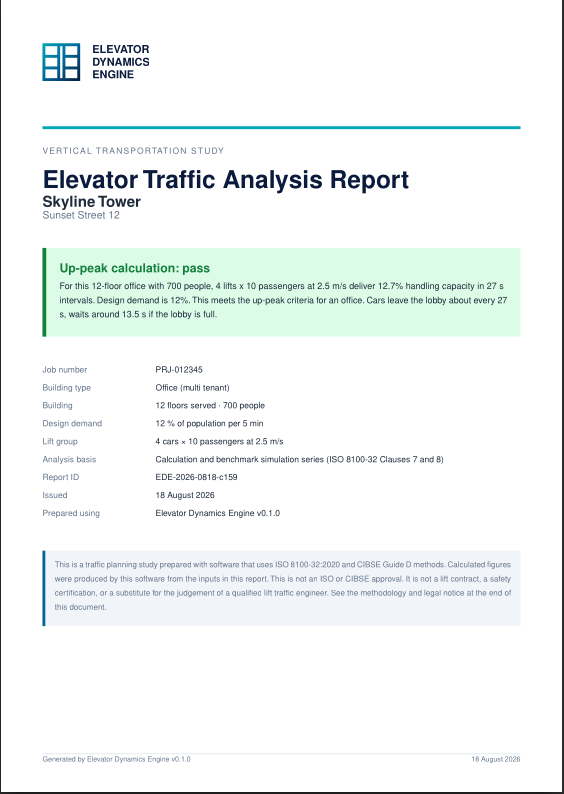

ISO PDF report
Cover, criteria, and simulated performance — ready for review. Click to enlarge. Sample shows pages 1–3.
Download sampleAdvanced simulator
DES runs, car timelines, and KPIs side by side with the analytical check. Click the video to enlarge.
Standards
Methods follow ISO 8100-32:2020 (planning, Annex D up-peak, §8 simulation) and CIBSE Guide D waiting-time bands. This is analysis software, not a certified or endorsed ISO/CIBSE product.
- ISO 8100-32:2020
- Annex D · §8
- CIBSE Guide D
Use cases
02
Concept designers
Compare car count, capacity, and speed options with lift traffic analysis and DES results side by side.
03
Developers and design teams
Export a report the client can read without opening the model.
Interactive guide
Look up every field and KPI — what it means, what it changes, and how the analytical check relates to DES. Keep it open beside the simulator while you size a project.
Open the guideLift traffic analysis FAQ
- How many lifts (elevators) does an office need?
- There is no fixed car count. Size the group so 5-minute handling capacity and interval meet ISO 8100-32 Table 2 for the building type, then check the result with simulation. Run a free up-peak analysis in the simulator with your floors, population, and car data.
- What is ISO 8100-32 up-peak analysis?
- ISO 8100-32:2020 Annex D is the planning method for up-peak lift traffic: round-trip time, interval, and handling capacity from building and lift data. Elevator Dynamics Engine runs that analytical check in the browser.
- What is 5-minute handling capacity?
- Handling capacity (HC%) is the share of building population the lift group can serve in five minutes. Offices typically target around 12% with a short interval; hotels and residential buildings use different Table 2 bands.
- What is CIBSE Guide D used for in lift design?
- CIBSE Guide D waiting-time bands rate passenger service (average waiting time). Use them alongside ISO handling-capacity and interval checks — the simulator reports both.
- Is this software ISO- or CIBSE-certified?
- No. Methods follow ISO 8100-32:2020 and CIBSE Guide D waiting-time bands. It is analysis software, not a certified or endorsed ISO/CIBSE product. A qualified lift traffic engineer still owns the design judgement.
- When will Pro subscriptions be available?
- Pro — DES simulation, ISO PDF export, advanced workspace, and cloud projects — is launching soon. Join the waitlist on the pricing page with your email. The free analytical simulator is available now.
